Reversible rescue kit with JAG SYSTEM haul kit and I’D EVAC descenderThe JAG RESCUE KIT is a ready-to-use reversible rescue kit designed to easily pick off and lower a victim. It contains a JAG SYSTEM haul kit, a RING OPEN gated ring, an I’D EVAC descender with integrated brake, a CONNEXION FIXE 150 cm anchor strap, a BUCKET bag, and an AXIS 11 mm rope with two sewn terminations. It is available in three lengths: 30, 60, and 120 m.
Comprehensive Rescue Kit for Efficient Victim Handling
This rescue kit is specifically designed for rapid response and efficient handling of emergency situations involving the need to pick-off and lower victims. It combines advanced mechanical systems and user-friendly features for optimal performance.
Efficient Victim Pick-Off and Lowering

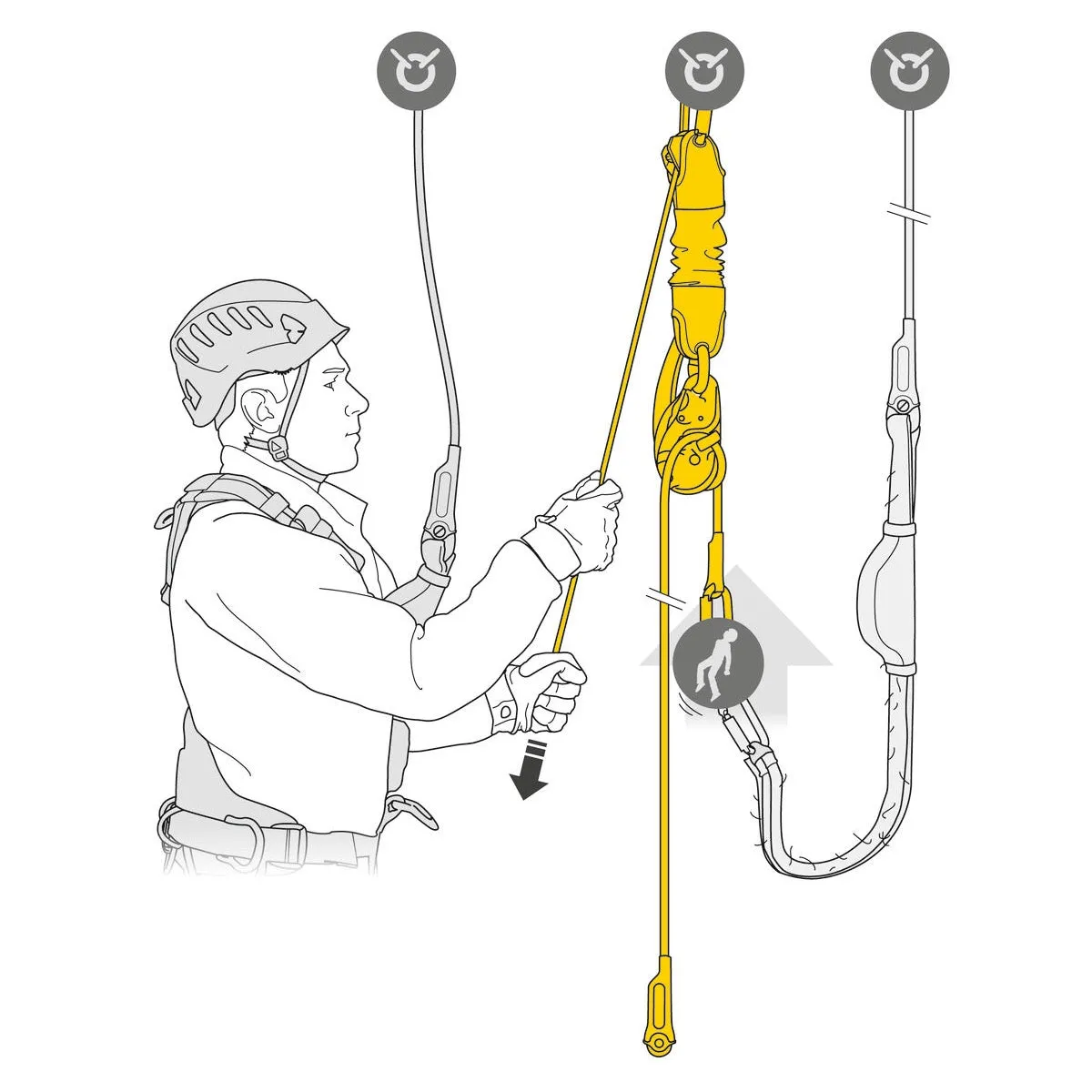

- Pick-Off with JAG SYSTEM: Features a haul kit with a 4:1 mechanical advantage and high sheave efficiency, significantly reducing the user effort required to raise a victim for release.
- Evacuation with I’D EVAC Descender: Includes a handle specially designed for easy lowering of a victim, with an anti-panic function that automatically brakes and stops the descent if the handle is pulled too hard.
Readiness and Usability
- Always Ready: The JAG SYSTEM is equipped with a flexible cover to reduce the risk of tangling, and the rope is pre-installed in the closed brake integrated in the descender, ensuring better control during descents and constant redirection.
- Transport and Storage: Includes a BUCKET bag for easy transportation of the kit, which comes loaded and ready to use for immediate deployment.
Kit Variations and Contents
- Rope Length Options: Available in three rope length versions to suit different rescue scenarios: 30, 60, and 120 meters.

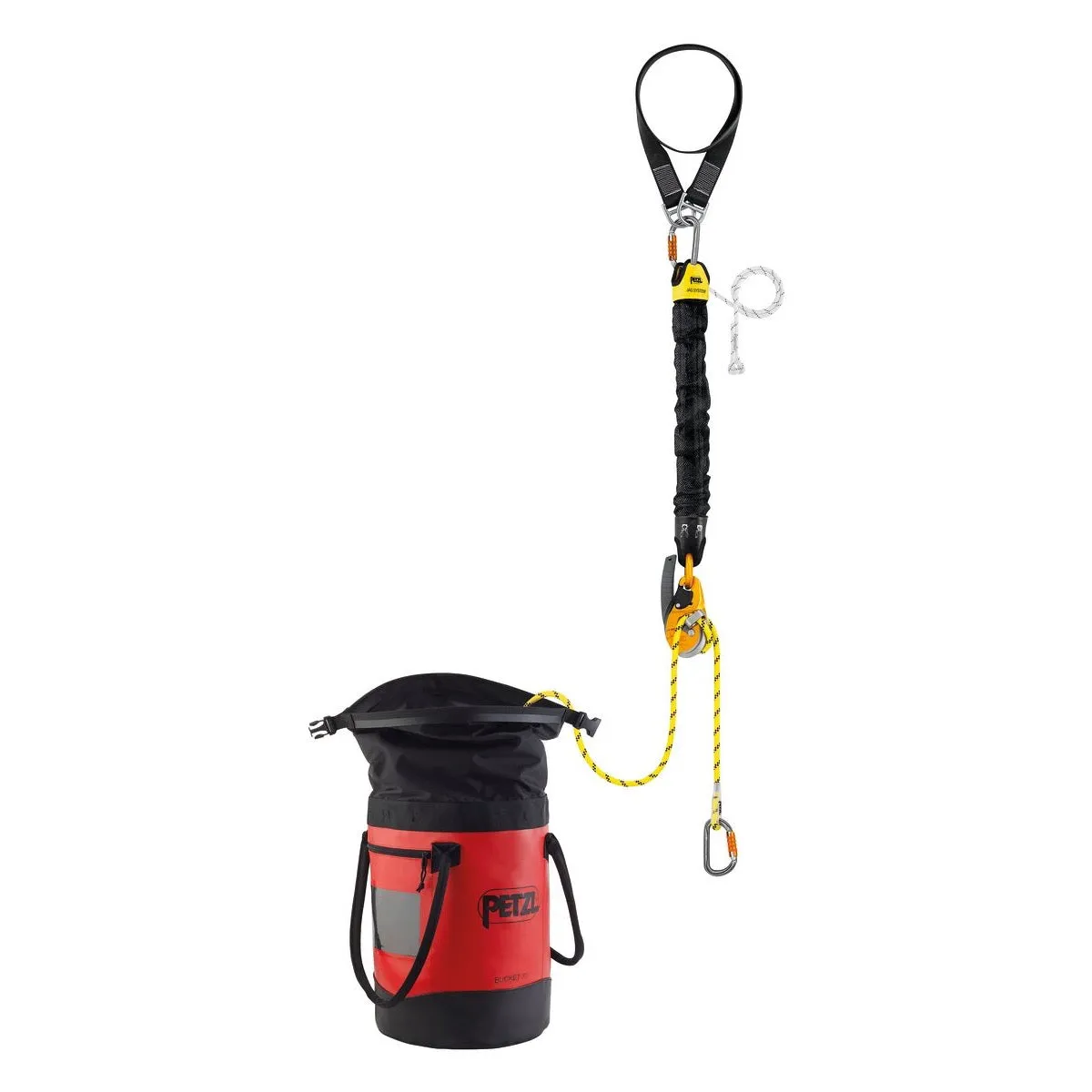

- Comprehensive Contents: The kit includes the JAG SYSTEM haul kit, RING OPEN gated ring, I’D EVAC descender, AXIS 11 mm rope with sewn terminations, CONNEXION FIXE 150 cm anchor strap, and BUCKET bags tailored to each rope length version.
Technical Information
- Working load limit: 250 kg
- Material(s): Aluminum, steel, nylon, polyurethane, polyester
